20' Berry Point Outboard Cruiser

Similar Designs

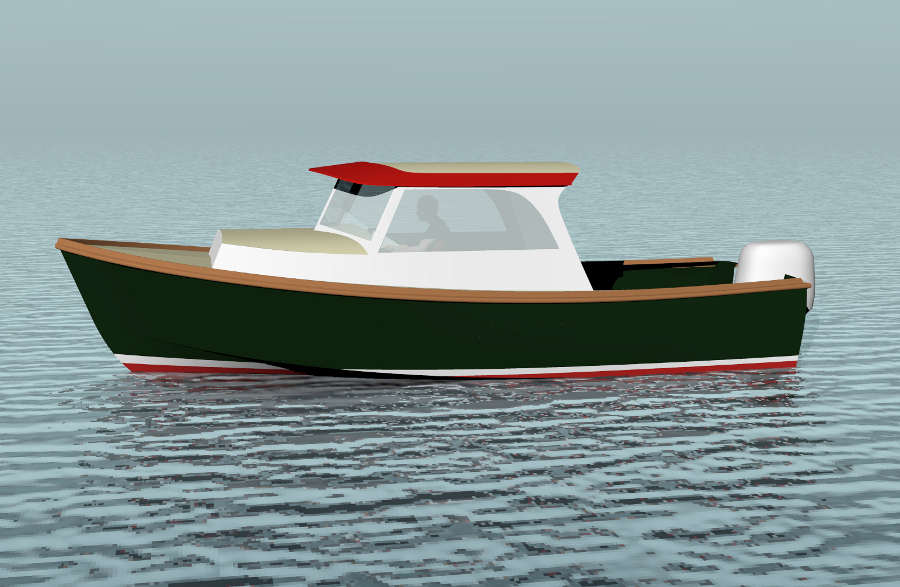

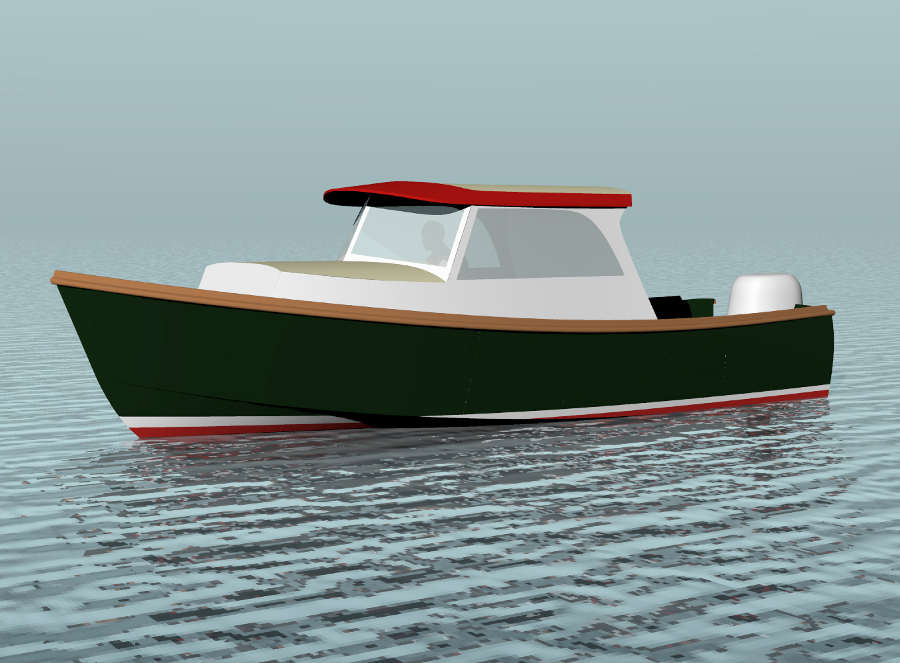

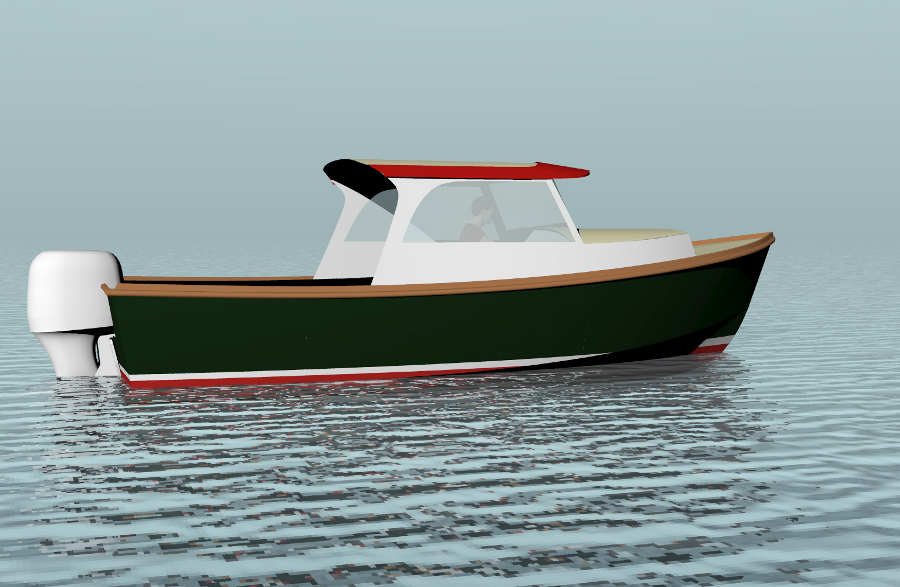

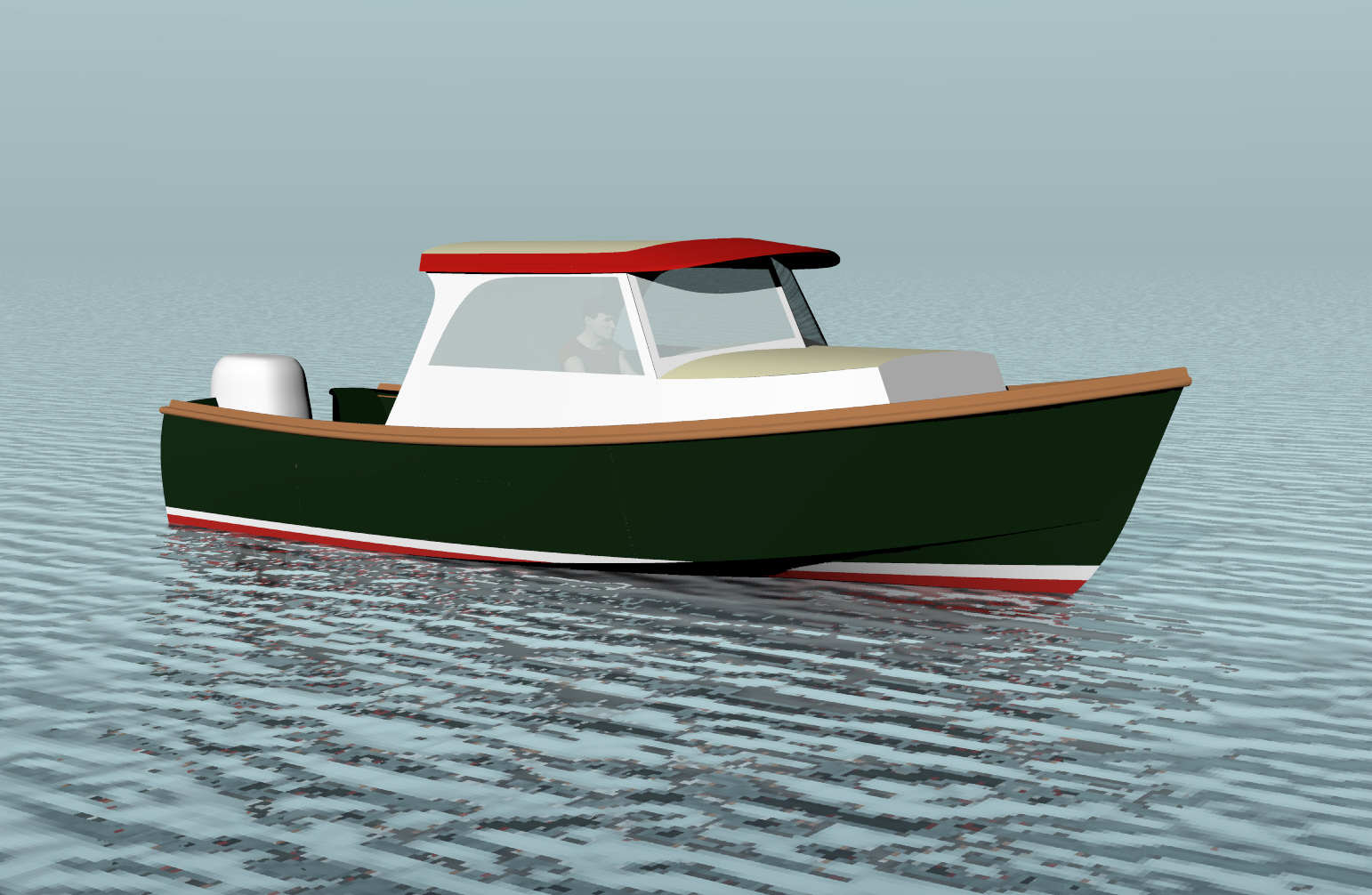

  • 20' Berry Point Outboard Cruiser
  • 20' Berry Point Outboard Cruiser
  • 20' Berry Point Outboard Cruiser
  • 20' Berry Point Outboard Cruiser
  • 20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman
  • 20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman
  • 20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman
  • 20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman
  • 20' Berry Point Outboard Cruiser
Click on the image for full-size version and slideshow

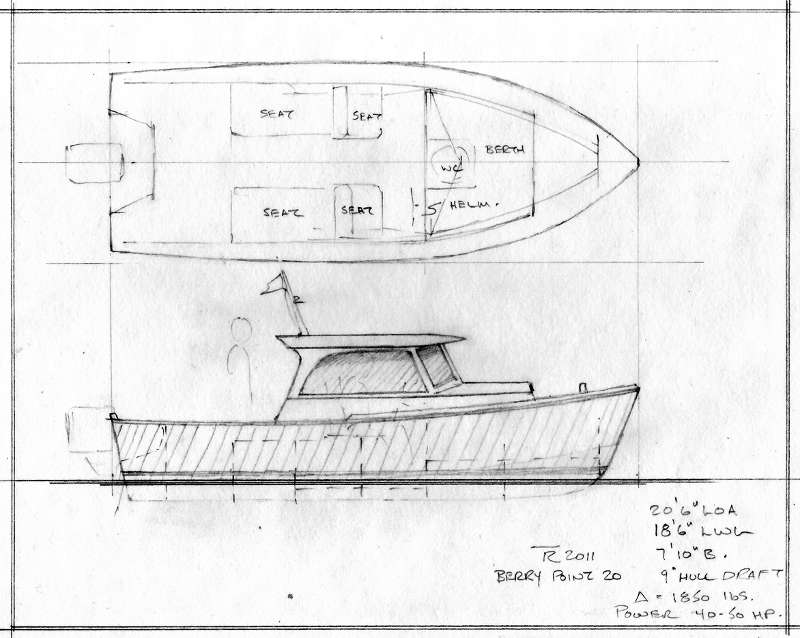

  • Vessel Specifications and Comments

    • LOA: 20' 6"
    • LWL: 18' 6"
    • Beam: 7’10”
    • Draft (hull): 9”
    • Displacement : 1850 lbs
    • Power: 40-50 HP, minimum 25 HP
    • Cruising Speed: knots
    • Top Speed: knots
    • Construction: Stitch and tape plywood on plywood bulkheads and stringers.
    • General Comments: Updated Models 2012/10/12. A smaller and far simpler version of the Berry Point 26.  Intended to be built in 5-600 hours instead of the 1500+ required for the larger boat.  Similar accommodation with vee berth and two cockpit seat/berths.  Head located under the vee in the cuddy cabin.  Watertight cockpit sole above waterline.

  • About the Plans

    • Designed for wooden construction: Stitch and tape plywood on plywood bulkheads and stringers.
    • Drawings: Dimensioned layout drawings of all plywood parts, no lofting.
    Order the Plans -->

Design Comments

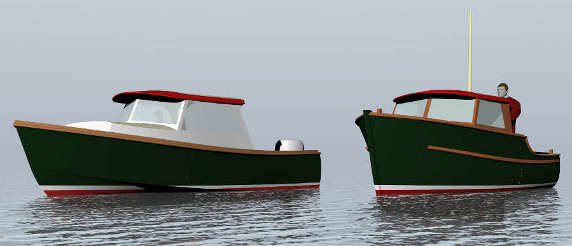

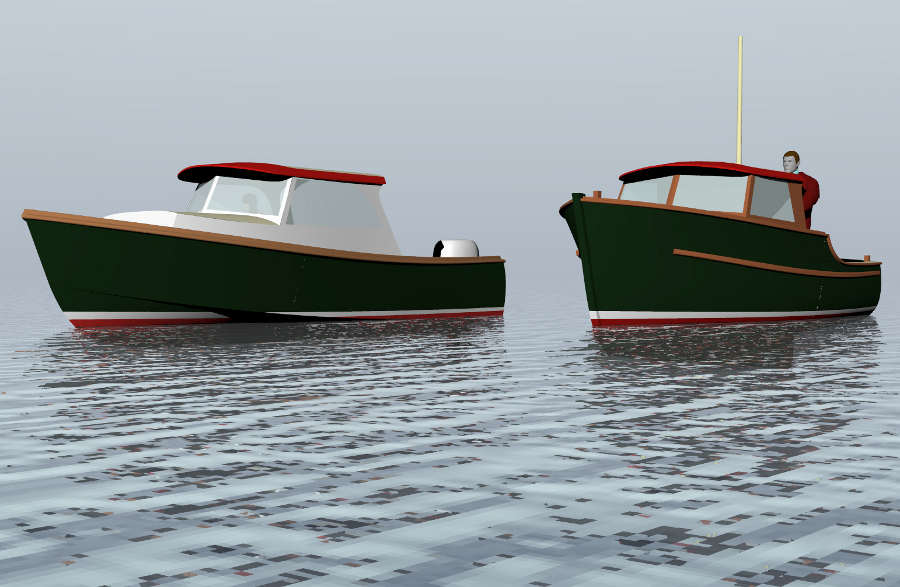

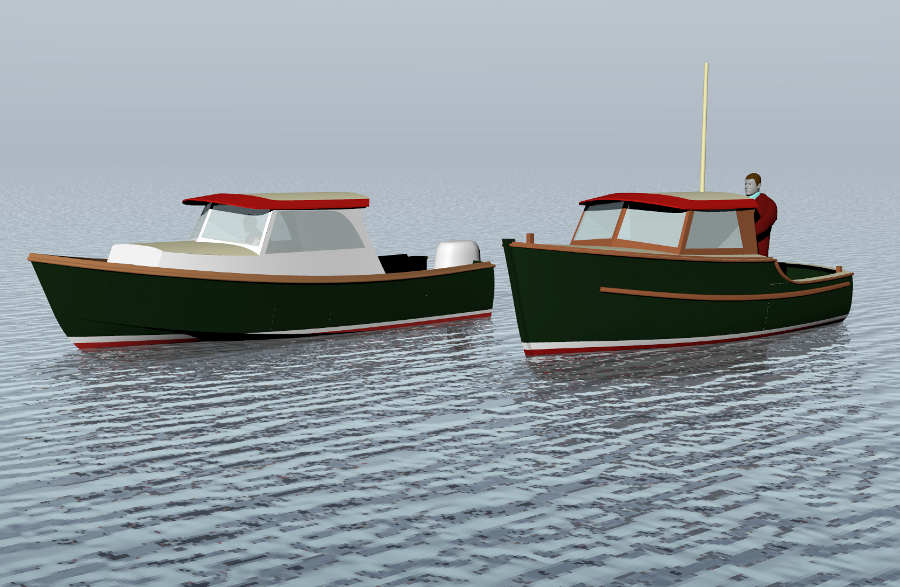

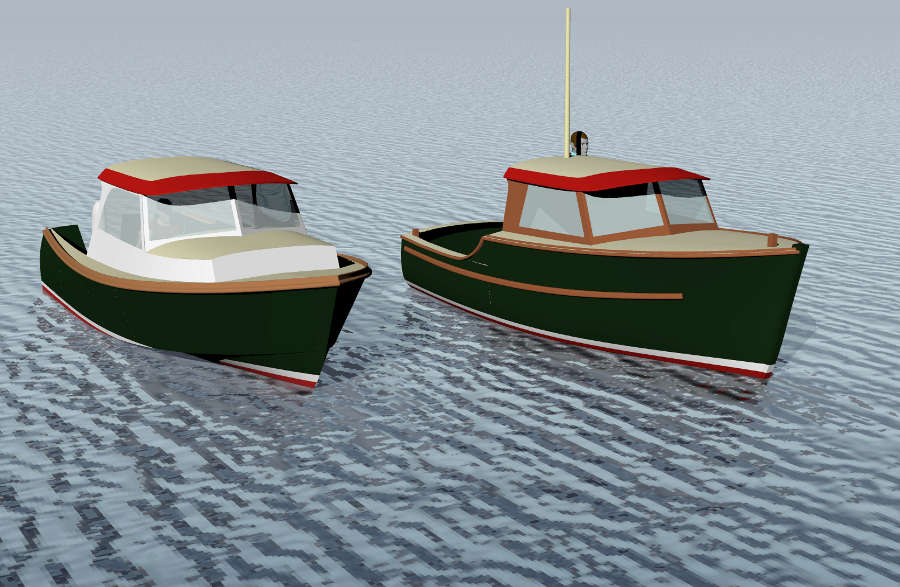

20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman

20' Berry Point Outboard Cruiser with Oak 18 Inshore Fisherman.

A smaller and far simpler version of the Berry Point 26.  Intended to be built in 5-600 hours instead of the 1500+ required for the larger boat.  Similar accommodation with vee berth and two cockpit seat/berths.  Head located under the vee in the cuddy cabin.  Watertight cockpit sole above waterline.

Tad Roberts
