Lambert 28, Sail Assisted Outboard Cruiser

Similar Designs
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
  • Lambert 28, sail assisted outboard cruiser. The most basic possible liveaboard coastwise cruiser for two people.
Click on the image for full-size version and slideshow

  • Vessel Specifications and Comments

    • LOA: 28’0”
    • LWL: 27’6”
    • Beam: 8’6”
    • Draft: 30”
    • Displacement: (ready for sea) 7500 lbs
    • Ballast: = 2000 lbs steel outside
    • Sail Area: 340 sq.ft.
    • Power: 9.9 to 25HP four stroke outboard.
    • Construction: plywood planking over plywood bulkheads, fiberglass sheathed.
    • General Comments: She is about the most basic possible liveaboard coastwise cruiser for two people. Some plywood, an outboard, one mast and a sail, and away you go. The cabin is full width and 13’3” long. The raised deck sides are intended to be full length plexiglass.

  • About the Plans

    • Construction Method and Materials:

    • Number and Type of Drawings:

    • Study Plan:

      --

    • Base Price:

      $.00 CAD
    Order the Plans -->

Designer's Comments

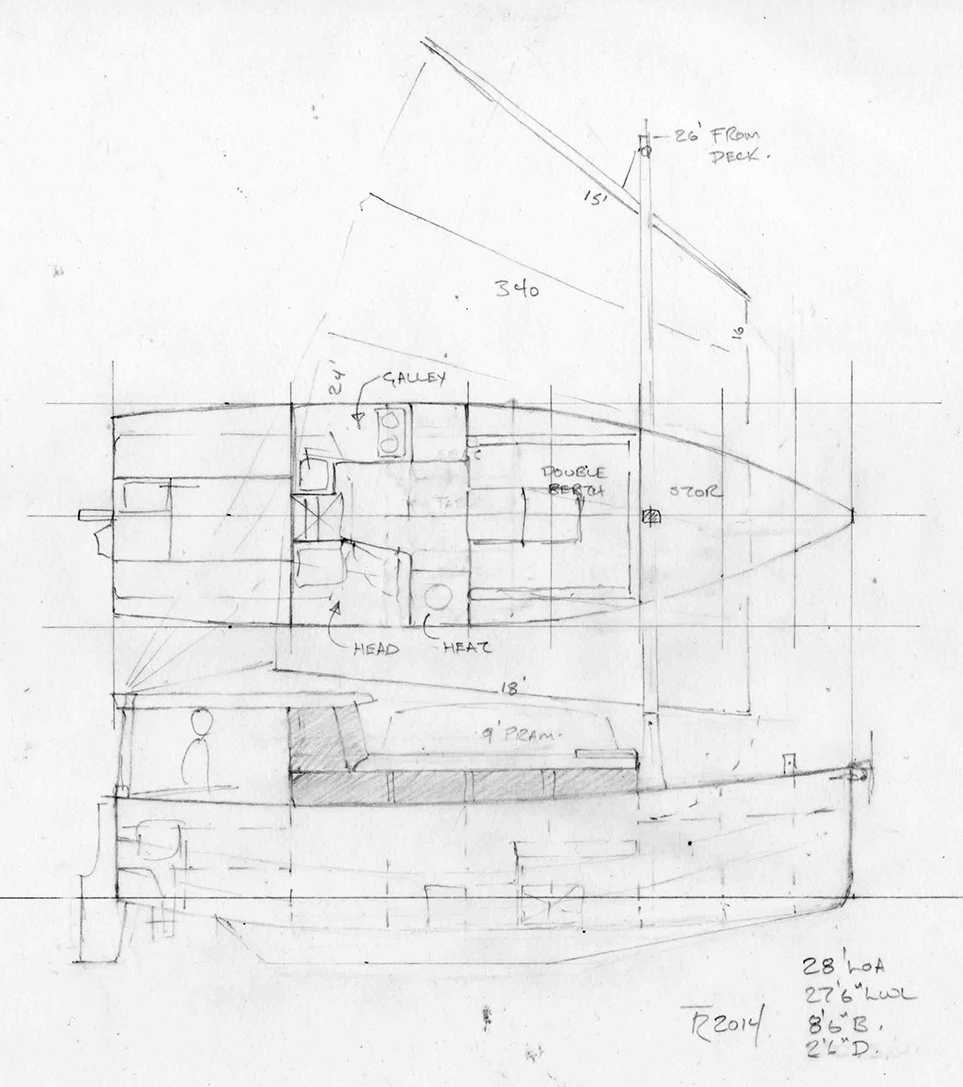

She is about the most basic possible liveaboard coastwise cruiser for two people. The great loop, inter-coastal waterway, and the great lakes are her haunts. Some plywood, an outboard, one mast and a sail, and away you go. The cabin is full width and 13’3” long; there are large storage areas forward and aft. The mast folds in a tabernacle and is unstayed. She could carry a dipping lug sail or the Chinese balanced lug. She will sail to windward but will not point high, reaching and running will her best points.

The raised deck sides are intended to be full length plexiglass. Down below is a large galley on port, with private head and heating stove opposite. There is room for a composting toilet. Forward is a raised (windows at eye level) U-shaped settee berth. My though is that the table folds in half athwartships, so that an athwartships double can be left made up forward and leave two seats aft at the table. If you’re having guests for dinner, unfold the table and pull the filler cushion, and dinning for 8. More storage plus a huge water tank is under the settee.

Speed under power will be in the 6-7 knot range, depending on final weight.

Tad Roberts
