60' Modern Steel Motorsailer


  • Vessel Specifications and Comments

    • LOD: 61’7.5”
    • LOW: 53’2”
    • Beam: 18’6”
    • Draft: (half-load) 7’6”
    • Displacement: lbs
    • Ballast: lbs
    • Sail Area: sq.ft.
    • Construction: Widely spaced cut web frames and flat bar longitudinals. Longitudinal bottom girders.
  • General Comments: 60’ modern steel radius chine motorsailer. In the style of a small Perini, with large deckhouse and cockpit on the same level, with good protection from weather and views all around. Large owners cabin and office aft with access to the aft cockpit/swim step. Guest cabins forward and galley downstairs under the cockpit. Large tank space under the deckhouse. Tall split rig (ketch) for easy handling and versatility.

About the Plans

    • Construction Method and Materials:

      Steel. Widely spaced cut web frames and flat bar longitudinals. Longitudinal bottom girders.
    • Number and Type of Drawings:

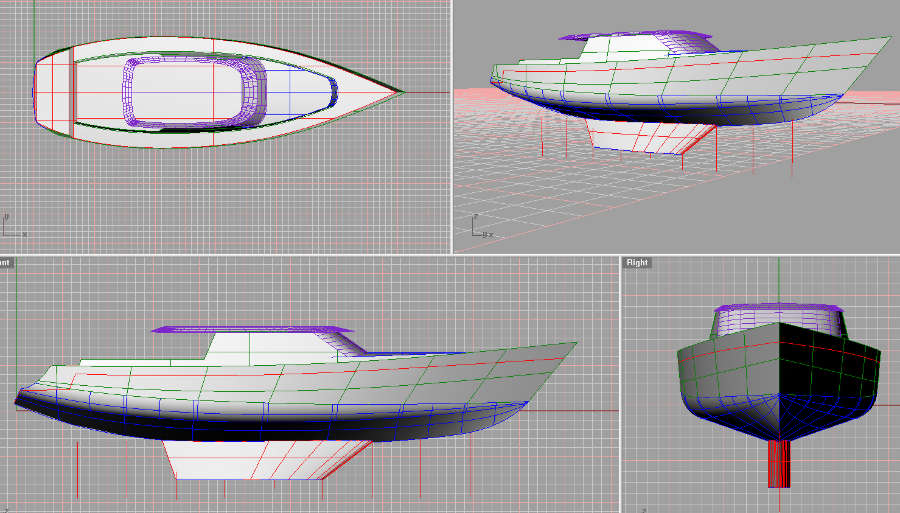

      Drawings in CAD, hull lines, deck lines, keel lines, general construction, construction sections, arrangement plan, deck plan, outboard elevation, inboard elevation, keel construction, sail plan, steering gear, tanks and machinery, rigging plan.
    • Study Plan: General Arrangement PDF
    • Study Plan: Sail Plan PDF
    • Design Comments: Design Comments
    • Base Price: $8500 CAD

Extended Comments

Tad Roberts
