25' Schooner Big Saturnina

Similar Designs

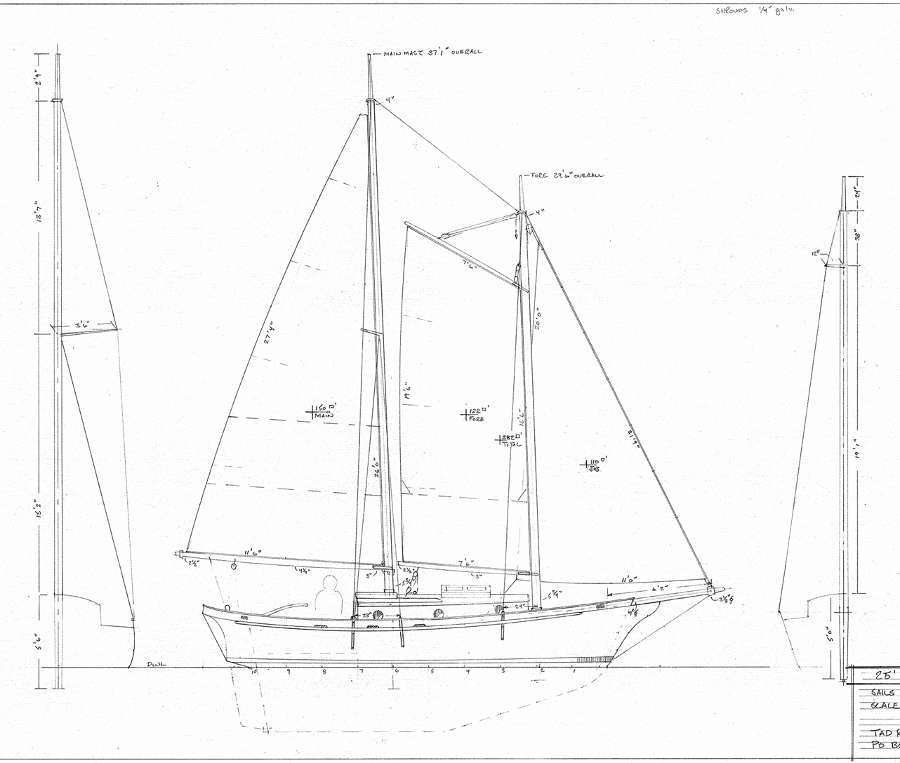

  • Sail Plan. 25' full keel schooner Big Saturnina, modeled on her little sister Saturnina and the small commercial coasters of the late 1800s
  • Sail Plan. 25' full keel schooner Big Saturnina, modeled on her little sister Saturnina and the small commercial coasters of the late 1800s

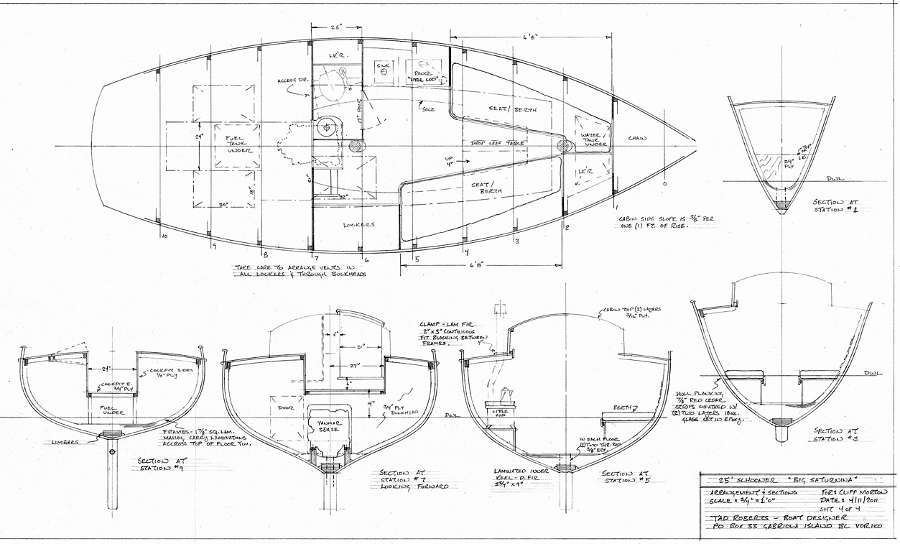

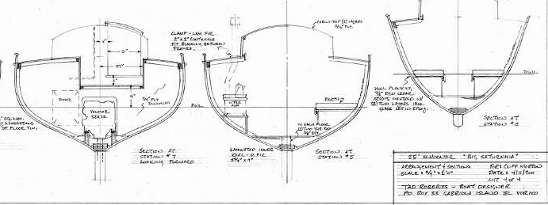

  • General Arrangement. 25' full keel schooner Big Saturnina, modeled on her little sister Saturnina and the small commercial coasters of the late 1800s

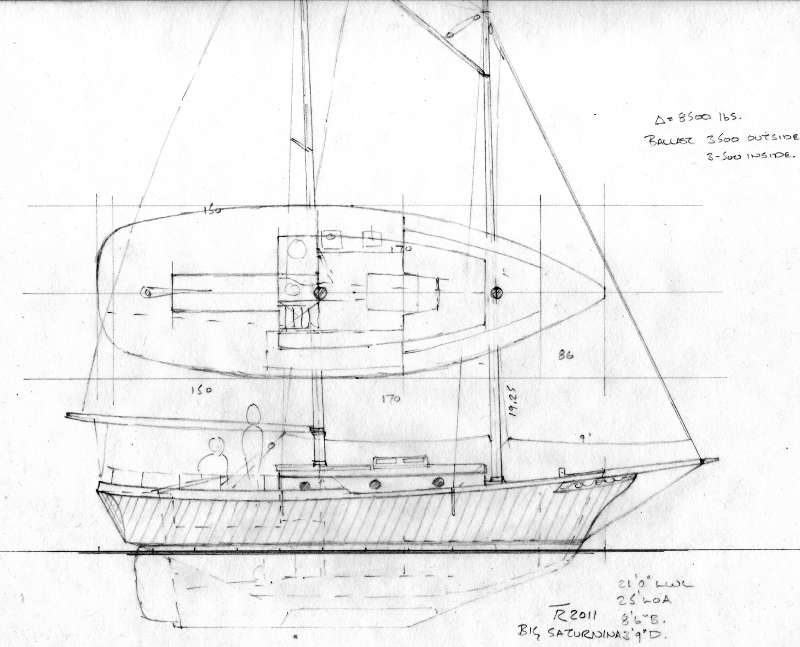

  • Design Study. 25' full keel schooner Big Saturnina, modeled on her little sister Saturnina and the small commercial coasters of the late 1800s

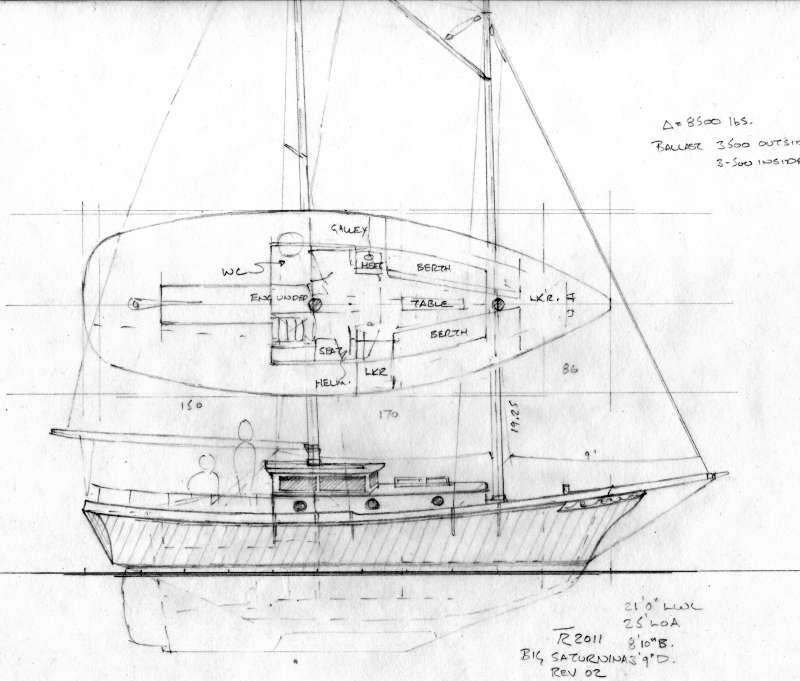

  • Design Study. 25' full keel schooner Big Saturnina, modeled on her little sister Saturnina and the small commercial coasters of the late 1800s
Click on the image for full-size version and slideshow

  • Vessel Specifications and Comments

    • LOD: 25' 0"
    • LWL: 21' 0"
    • Beam: 8' 10"
    • Draft: 3'9"
    • Displacement: 8500 lbs
    • Ballast: 3500 lbs outside, 500 lbs inside
    • Sail Area: 376 sq.ft.
    • Construction: Sheathed strip planking on laminated frames.  Plywood deck. Two house versions, trunk cabin with 5’4” headroom and pilothouse with 6’3” headroom.
    • General Comments: Updated, November 20, 2011. Final sailplan, accommodation and hull lines drawings as well as two pdf study plans have been added to the Big Saturnina 25 page. Recently commissioned by a BC client. An adaption of her smaller sister Saturnina 2205, modeled on the small commercial coasters of the late 1800s. Two house versions, trunk cabin with 5’4” headroom and pilothouse with 6’3” headroom.

About the Plans

Extended Comments

25' full keel Schooner Saturnina

Recently commissioned by a BC client. An adaption of her smaller sister Saturnina, modeled on the small commercial coasters of the late 1800s. Two house versions, trunk cabin with 5’4” headroom and pilothouse with 6’3” headroom.

Tad Roberts
