Badley 40, ultralight Georgia Strait cruiser

Similar Designs
  • Badley 40, ultralight Georgia Strait cruiser
  • Badley 40, ultralight Georgia Strait cruiser
Click on the image for full-size version and slideshow

  • Badley 40 Specifications

    • LOA: 40' 0"
    • LOD:
    • LWL: 40' 0"
    • Beam: 8’1.5”
    • Draft: 28"
    • Displacement: 57000 lbs
    • Ballast: lbs
    • Top Speed: 12 mph
    • Power: 25HP Volvo diesel
    • Construction: Cold-molded or foam core.

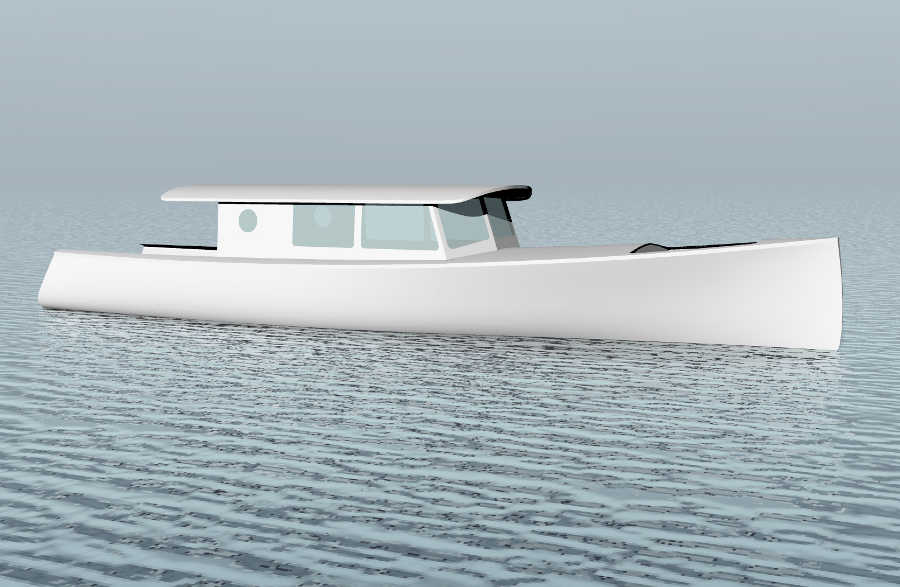

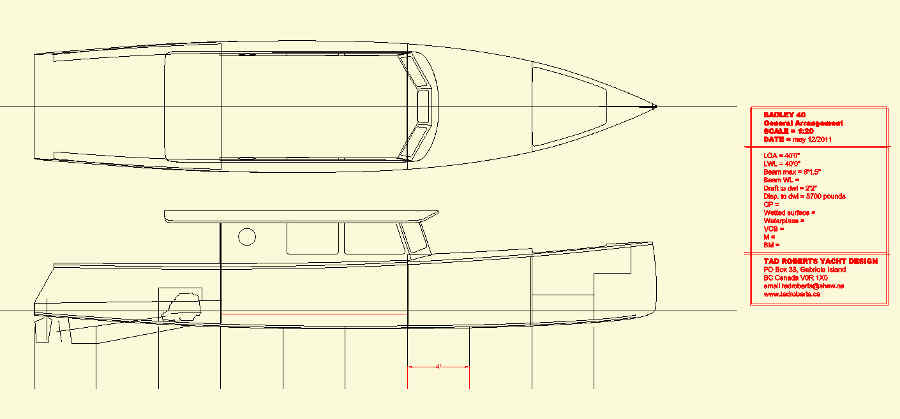

    • General Comments: An ultralight Georgia Strait cruiser. Built of ¾” red cedar strips over ¾” fir plywood frames spaced 24”, planking is glass sheathed inside and out. The deck is foam cored glass. 12’ long open cockpit aft with the engine in a box towards it’s forward end. Then a 12’ long deckhouse with head, galley, dinette and helm station. Forward is an 8’ long sleeping cabin with two bunks and lockers, and finally a large open forward cockpit. Currently (2013) under construction by the owner on the Sunshine coast.
Tad Roberts
